Interstellar 03 Linear LED Strip

ECO-J-ST03-4FT40WS-3545K 3.5mm Sensor base 24–40W · Watts
Series platform · Indoor
Linear

Interstellar 03 Linear LED Strip product photograph — *Plate 01 — ECO-J-ST03-4FT40WS-3545K 3.5mm Sensor base* From PIM

130 lm/W

Efficacy

5,200

Max lumens

50,000 hrs

Rated life · L70

10 yrs

Non-prorated warranty

Configure on-site

one fixture · every spec

Power

24–40W

2 configs

Color

See specs

Voltage

120-277

universal

Stock

US stock

In the field / Linear

Interstellar 03 Linear LED Strip installation environment

On the job

Built for the aisles and workbenches that never sit idle.

CCT selection on site.

Indoor · Linear

Full specs / Interstellar 03 Linear LED Strip

Wattage Range	24–40W
Lumen Output	3,120–5,200 lm
Efficacy	130
CRI	80
Voltage	120-277
Dimming / Controls	0-10
IP Rating	IP65
Certifications	DLC, ETL, 10-YR Warranty
Warranty	10-year non-prorated
US Stock	2 configurations · $200M+ inventory

The sheet / Series ECO-J-ST03-4FT40WS-3545K 3.5mm Sensor base

LinearIndoorUS StockArchitect's Select

DLCETL10-YR Warranty

Features

012 configurations in US stock
02Efficacy up to 130 lm/W
0310-year non-prorated warranty
040-10 dimming
05DLC, ETL
06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Request specification sheet Photometric files (IES)

US Stock / 2 configurations

Model	Watts	Lumens	CCT	Voltage	Image
ECO-J-ST03-4FT40WS-3545K 3.5mm Sensor base	24–40W	3,120–5,200	—	120-277

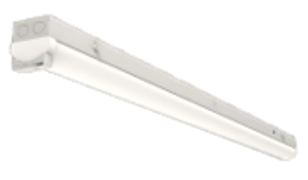

ECO-J-ST03-4FT40WS-3545K-EM Pre-installed 8W emergency	24–40W	3,120–5,200	—	120-277

Where to buy

Put the Interstellar 03 Linear LED Strip on your project.

Tell us about the site — our team will align you with a partnered EcoLite provider in your area, with photometrics run for your layout before anyone quotes a number.

Find your provider
