Constellation Star Canopy

Canopy Light — 75/60/40W selectable | Up to 5400 lm | 120-277V | 3000/4000/5000K selectable CCT | DLC, ETL

ECO-J-CP75W-CS-3CCT-A With Sensor base 40–75W · Watts
Series platform · Outdoor
Canopy

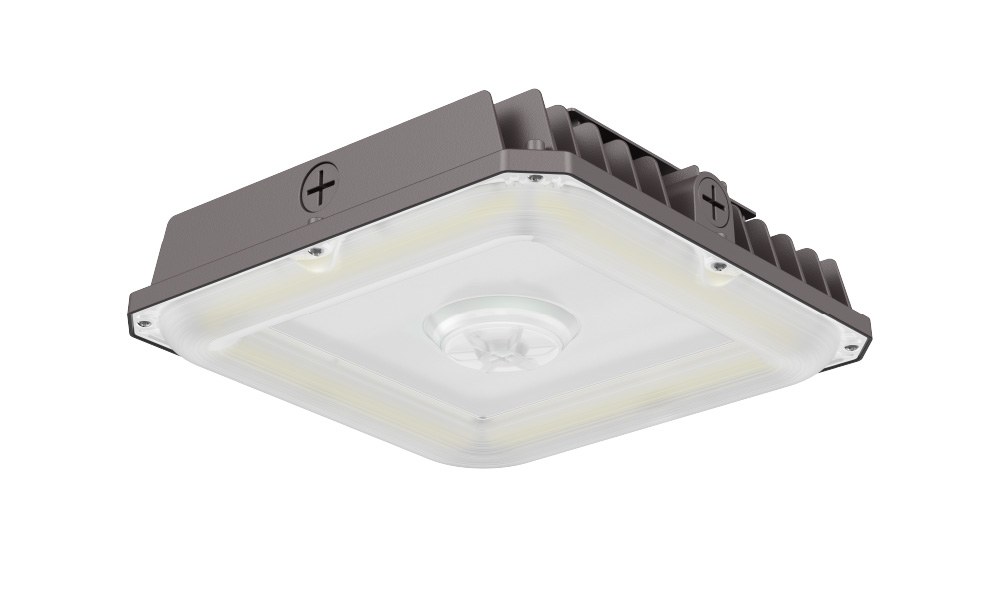

Constellation Star Canopy product photograph
Plate 01 — ECO-J-CP75W-CS-3CCT-A With Sensor base From PIM
135 lm/W
Efficacy
10,125
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
40–75W
2 configs
Color
3K / 4K / 5K
tunable
Voltage
120-277
universal
Stock
2
US stock
In the field / Canopy
Constellation Star Canopy installation environment
On the job

Built for the fuel islands and drive-throughs that never turn the lights off.

IP65 sealed, 30–240 W.

Outdoor · Canopy
Full specs / Constellation Star Canopy
Wattage Range 40–75W
Lumen Output 5,400–10,125 lm
Efficacy 135
CCT Options 3K / 4K / 5K (selectable)
CRI 80
Voltage 120-277
Dimming / Controls 0-10
IP Rating IP65
Finish Bronze
Certifications DLC, ETL, 10-YR Warranty
Warranty 10-year non-prorated
US Stock 2 configurations · $200M+ inventory
The sheet / Series ECO-J-CP75W-CS-3CCT-A With Sensor base

Canopy Light — 75/60/40W selectable | Up to 5400 lm | 120-277V | 3000/4000/5000K selectable CCT | DLC, ETL

CanopyOutdoorUS StockArchitect's Select
DLCETL10-YR Warranty
Features
  • 012 configurations in US stock
  • 02Efficacy up to 135 lm/W
  • 0310-year non-prorated warranty
  • 040-10 dimming
  • 05DLC, ETL
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF) Photometric files (IES)
US Stock / 2 configurations
Model Watts Lumens CCT Voltage Image
ECO-J-CP75W-CS-3CCT-A With Sensor base 40–75W 5,400–10,125 3K/4K/5K 120-277 ECO-J-CP75W-CS-3CCT-A With Sensor base
ECO-J-CP75W-CS-3CCT-ASensor base 40–75W —–10,125 3K/4K/5K 120-277 ECO-J-CP75W-CS-3CCT-ASensor base
Where to buy

Put the Constellation Star Canopy on your project.

Tell us about the site — our team will align you with a partnered EcoLite provider in your area, with photometrics run for your layout before anyone quotes a number.

Find your provider
