Altair Up/Down Pendant

Adjustable Up&Down Lighting, 4FT 50W, 115LM/W,120-277V, 0-10V Dim, 3500K-4000K-5000K, Black fixture, Suspension

ECO-LS-4FT50W-35/40/50K 20–60W · Watts
Series platform · Indoor
Linear
Altair Up/Down Pendant product photograph
Plate 01 — ECO-LS-4FT50W-35/40/50K From PIM
120 lm/W
Efficacy
7,800
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
20–60W
3 configs
Color
3K / 3.5K / 4K / 5K / 6.5K
tunable
Voltage
both
universal
Stock
3
US stock
In the field / Linear
Altair Up/Down Pendant installation environment
On the job

Built for the aisles and workbenches that never sit idle.

CCT selection on site.

Indoor · Linear
Full specs / Altair Up/Down Pendant
Wattage Range 20–60W
Lumen Output 2,600–7,800 lm
Efficacy 120
CCT Options 3K / 3.5K / 4K / 5K / 6.5K (selectable)
CRI 80
Voltage both
Dimming / Controls 0-10
Finish Black
Certifications UL, DLC, 10-YR Warranty
Warranty 10-year non-prorated
US Stock 3 configurations · $200M+ inventory
The sheet / Series ECO-LS-4FT50W-35/40/50K

Adjustable Up&Down Lighting, 4FT 50W, 115LM/W,120-277V, 0-10V Dim, 3500K-4000K-5000K, Black fixture, Suspension

LinearIndoorUS StockArchitect's Select
ULDLC10-YR Warranty
Features
  • 013 configurations in US stock
  • 02Efficacy up to 120 lm/W
  • 0310-year non-prorated warranty
  • 040-10 dimming
  • 05UL, DLC
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF) Photometric files (IES)
US Stock / 3 configurations
Model Watts Lumens CCT Voltage Image
ECO-LS-4FT50W-35/40/50K 50W 6,000 3.5K/4K/5K both ECO-LS-4FT50W-35/40/50K

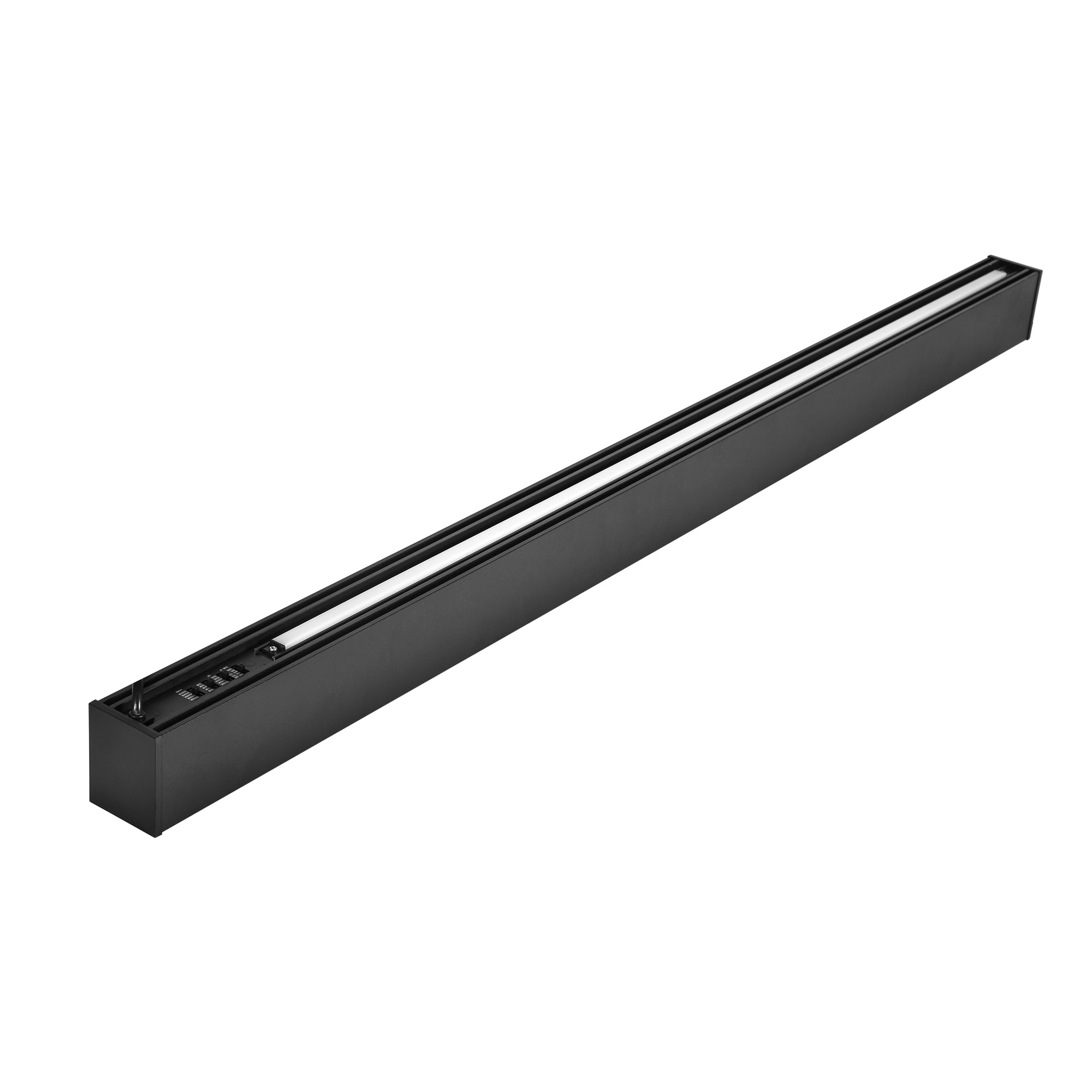

ECO-UDLL4FT60WXXK-B 20–60W 2,600–7,800 3K/3.5K/4K/5K/6.5K 120-277 ECO-UDLL4FT60WXXK-B

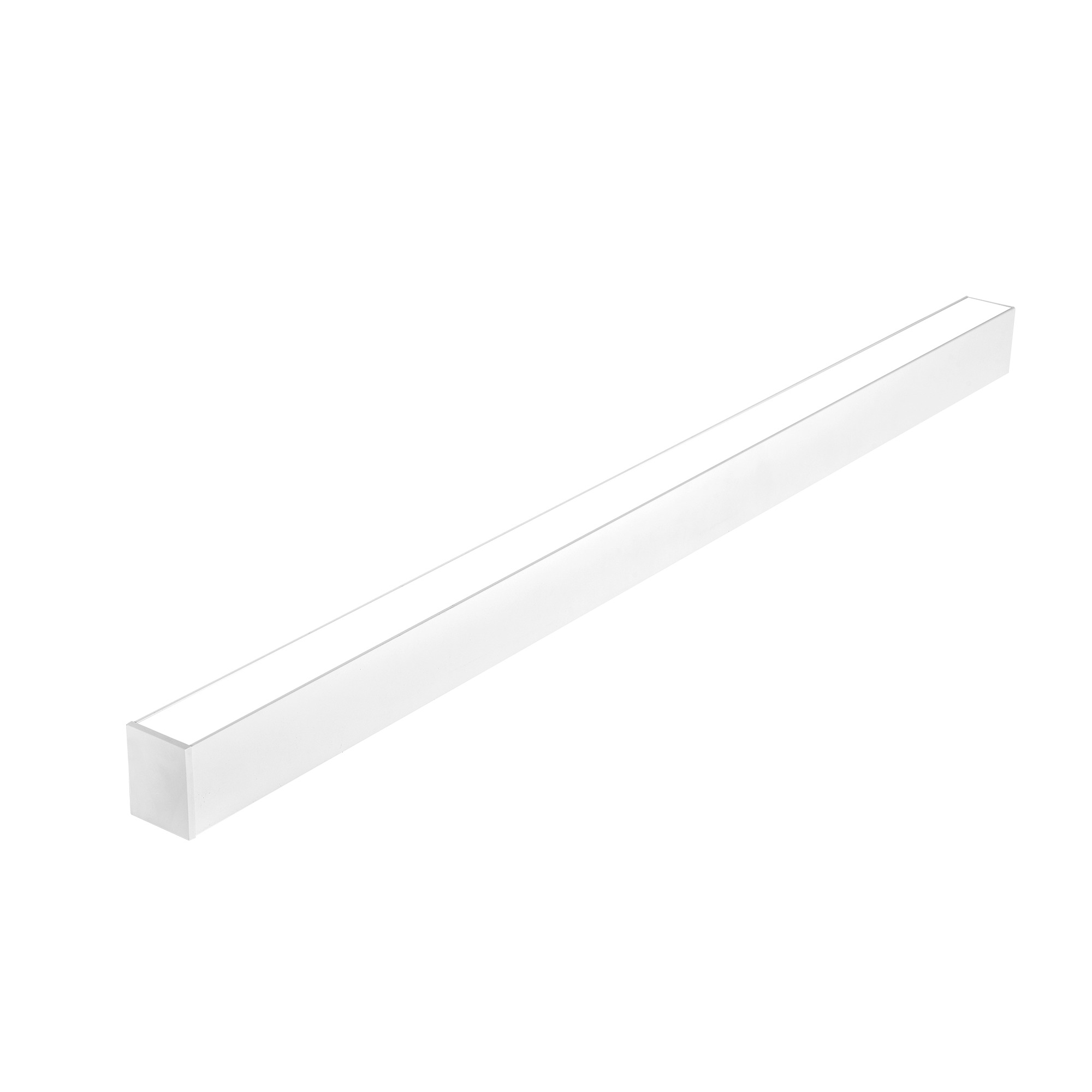

ECO-UDLL4FT60WXXK-W 20–60W 2,600–7,800 3K/3.5K/4K/5K/6.5K 120-277 ECO-UDLL4FT60WXXK-W
